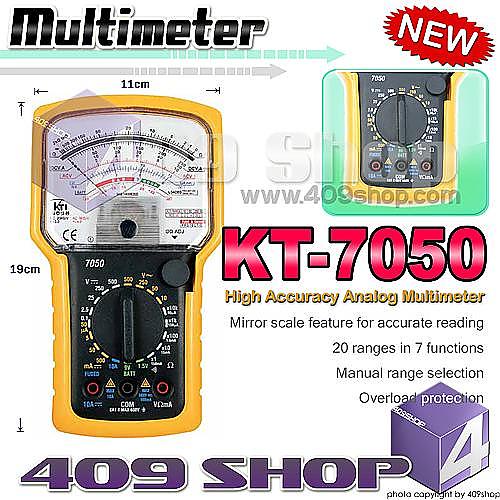

Analogue multimeter in a handy compact housing
Mirror scale feature for accurate reading
20 ranges in 7 functions
Manual range selection
Overload protection
AC/DC voltage measurement up to 500V
DC current measurement up to 10A
Resistance measurement up to 20MΩ
Audible continuity & diode tests
LED test
Battery check 1.5V & 9V
Input impedence: 20KΩ/ VDC,9KΩ/ VAC
Accessories included: 1.5V & 9V battery, elastomer boot, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.1/2.5/25/250/500V (±3.0% f.s)
AC Voltage 10/50/500/500V (±4.0% f.s)
DC Current 0.05m/5m/50m/500m/10A (±3.0% f.s)
Resistance 2K/20K/200K/2M/20MΩ (±3.0% f.s)
Battery check 1.5V (150mA), 9V (15mA)
Continuity test Approx. 0…30Ω
dB measurement: -10~56 (0dB 1mW/600Ω)
Operating temperature 0~40℃ at RH<80%
Weight Approx. 470g included battery
Measurement Category EN61010-1,CAT II,600V
|
|
- 1 x KTI High Sensitivity Analog Multimeter
- 1 x pair of Test Leads
- 1 x Manual
**We will randomly delivery, no color choice | | |
