| TGUV2 +4-001K+41-27K

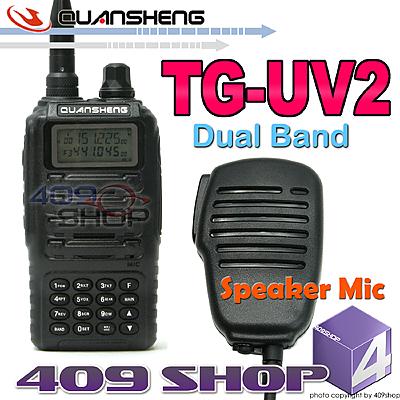

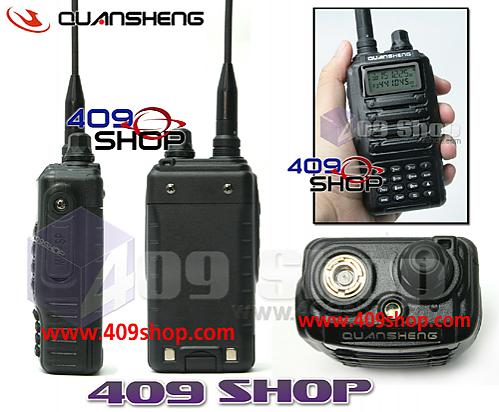

QUANSHENG TG-UV2 Dual Band (VHF 136-174Mhz and UHF 400-470MHZ)+Speaker Mic
Key Specifications/Special Features:
Key Specifications/Special Features:
· Frequency range:
FM: 88-108MHz (RX)
VHF: 136-174MHz (RX/TX)
UHF: 400-470MHz (RX/TX)
Double frequency display of the LCD
- U-U, V-V, U-V work mode
- Voice scrambler (Optional)
- CTCSS/DCS auto search
- Built-in Vox function
- FM radio
- Jacklight function
- Alpha-numeric display
- Talk in multi-bands
- PC programmable
- 1750Hz call tone
- Frequency/channel scanning
- Channel scanning list edition(by which you may choose a channel to scan)
- Battery : Li-ion battery
- Dual-watch operation
- Power switch:5w/2.5w/1w
- Priority scan
- Wide/narrow bandwidth
- Transmitter:
- Power output: High≥5w Medium ≥2.5w Low ≥1w
- Emission Current: ≤1.5A
- Modulation sensitivity: 12mV
- Modulation Distortion: <5%
- Modulation Limiting : Wide <5KHz Narrow <2.5KHz
- Modulation Mode: 16ΦF3E 11KΦF3E
- Remanent Radiation ≤7μw
- Preemphasis character : 6dB
- CTCSS/DCS Frequency Deviation :0.75KHz±50Hz 0.37KHz±30Hz
- Receiver:
- RF Sensitivity: -122dBm(12dB SINAD)
- Modulation Receiver Bandwith: 5KHz
- Audio Distortion: ≤10%
- Audio power: <0.5w
- Audio Response:6dB
- Blocking: ≥85dB
- Spurious response rejection: ≥65db
- Dimensions: 110mmx 56mmx 37mm
Free for

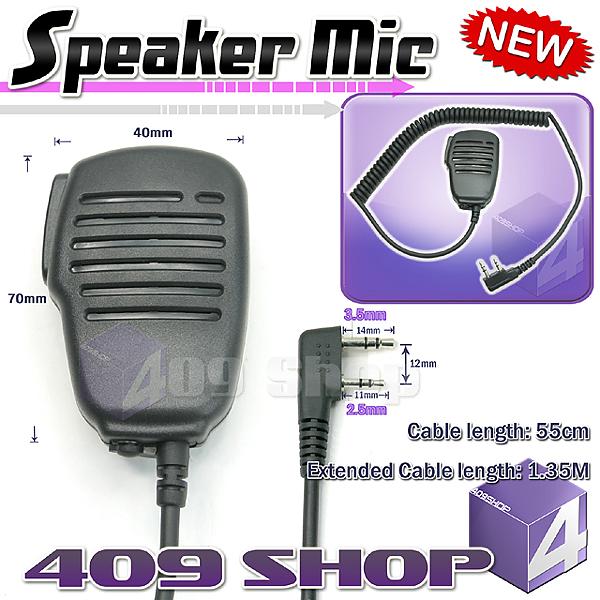

Speaker Microphone
Free for

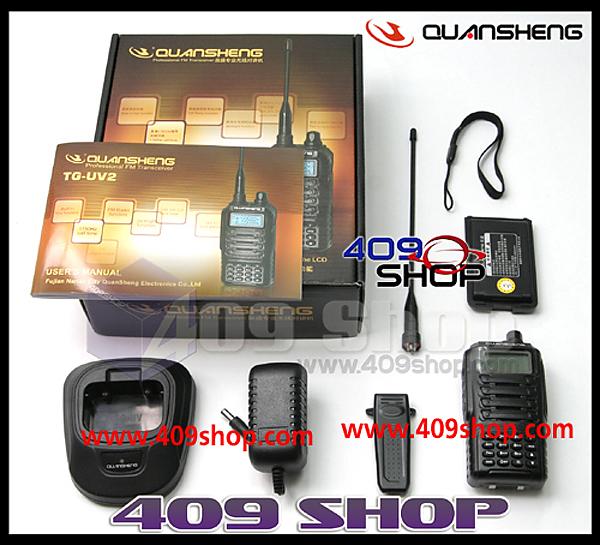

- 1x Quansheng Dual Band radio TG-UV2 (VHF 136-174Mhz and UHF 400-470MHZ)
- 1x 7.4V 2000mah Li-ion Battery Pack
- 1x Dual band Antenna.
- 1x Belt Clip.
- 1x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1x Earpiece with PTT
- 1 x Speaker Microphone
* This model without Voice scrambler
|
|
|
|
