TG-6A VHF +2-079

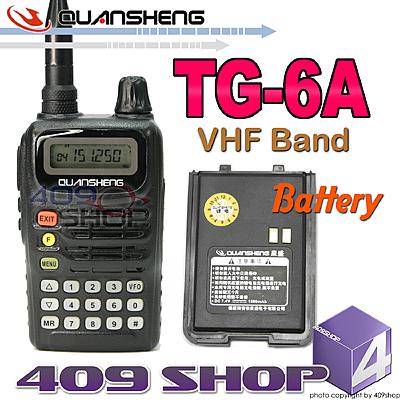

QUANSHENG FM Transceiver Radio VHF 136-174Mhz TG6A+Earpiece+Battery
　

INFO :

• Dual watch function

• FM radio

• 100 channels

• 50 CTCSS and 208 DCS

• Switch power between high, medium, and low

• Monitor and scan function

• Display channel and frequency mode

• Low power alarm

• Keypad and LCD backlight function

• Earphone, microphone, and automatic charger jack

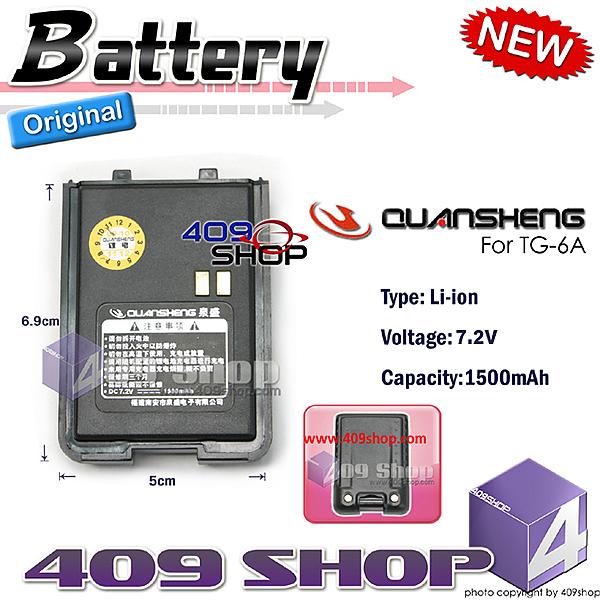

• Battery: 1,100mAh lithium ion battery pack (rechargeable)

• Frequency range:  VHF: 136 to 174MHz

  Transmitter:

•

  • Power output: ≥4/2/1W

  • Emission current: 1.5A (4W)

  • Modulation mode: 16KΦF3E and 11KΦF3E

  • Maximum frequency deviation: <5K/<2.5kHz

  • Radiation response: <7μW

  • Modulation sensitivity: 12mV

  • Modulation distortion:<5%

• Receiver:

  • Sensitivity: -122dBm (12dB SINAD)

  • Audio output power: 500mW

  • Audio distortion: <10%

  • Blocking: ≥85dB

  • Inter-modulation: ≥60dB, ≥55dB

  • Adjacent channel selectivity: ≥65dB, ≥60dB

  • Spurious response rejection: ≥65dB

• Dimensions: 11 x 5.6 x 3.7cm

• Weight: 0.85kg

  Free for Battery

•

  Free for



  　

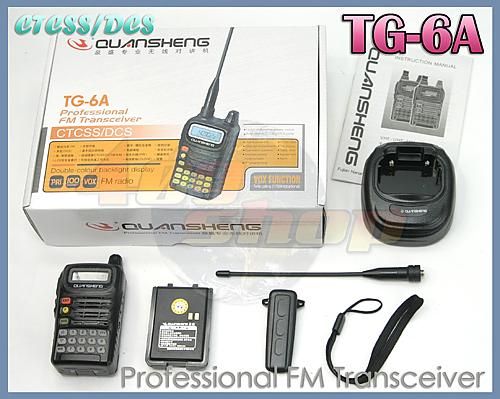

  Each Set PACKAGE CONTAIN 1x TG-6A  (VHF 136-174Mhz) 2x 7.2 v 1500mah Li-ion Battery 1x VHF Antenna. 1x Belt Clip. 1x English Manual 1x Earpiece 1x Wrist Strap 1x Desktop Charger * *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
