TG-6A UHF + 2-079

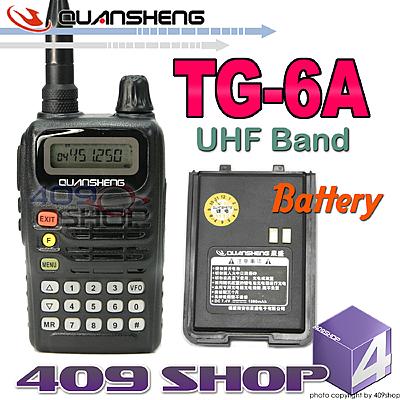

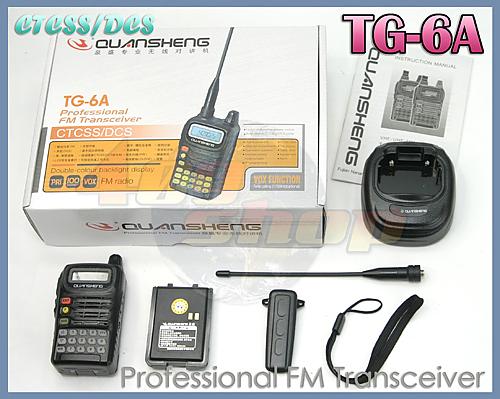

QUANSHENG FM Transceiver Radio UHF 400-470Mhz TG-6A+Earpiece+Battery
INFO :
Dual watch function
FM radio
100 channels
50 CTCSS and 208 DCS
Switch power between high, medium, and low
Monitor and scan function
Display channel and frequency mode
Low power alarm
Keypad and LCD backlight function
Earphone, microphone, and automatic charger jack
Battery: 1,100mAh lithium ion battery pack (rechargeable)
Frequency range: UHF: 400 to 470MHz
Transmitter:
-
Power output: ≥4/2/1W
-
Emission current: 1.5A (4W)
-
Modulation mode: 16KΦF3E and 11KΦF3E
-
Maximum frequency deviation: <5K/<2.5kHz
-
Radiation response: <7μW
-
Modulation sensitivity: 12mV
-
Modulation distortion:<5%
Receiver:
-
Sensitivity: -122dBm (12dB SINAD)
-
Audio output power: 500mW
-
Audio distortion: <10%
-
Blocking: ≥85dB
-
Inter-modulation: ≥60dB, ≥55dB
-
Adjacent channel selectivity: ≥65dB, ≥60dB
-
Spurious response rejection: ≥65dB
Dimensions: 11 x 5.6 x 3.7cm
Weight: 0.85kg
Free for Battery
|
Free for
| |
