IBQ101

Portable Frequency Counter IBQ101 50M-2.6Ghz

Item specifics

Description:
Easy to operate, reliable in quality, and small in size, IBQ101 handheld frequency counter is a super compact frequency measuring instrument.

Features:

• Multi-Function LCD Display
• 9-Dight Display
• Analog bar and Digit Signal Strength Indicator
• Display Holding
• 50 Display Readings Saving
• Power Indicator
• Interactive User Menu
• Equipped with UV antenna and USB Power adapter

Specifications:

Model: IBQ101
Range: 50MHz-2.6GHz
Amplifier: 50 ohm
Impedance:50 ohm; VSWR<2:1
RF signal strength
Sensitivity: <5mV@100MHz, <5mV@400MHz,<15mV@1GHz
Gate: 0.1ms, 0.1s, 1s
Time Base: <+/-30ppm
LSD: 100Hz/ls
Battery: 3xAAA Ni-MH *** NOT include Battery ***
Power: 5VDC 1A
Cabinet: ABS

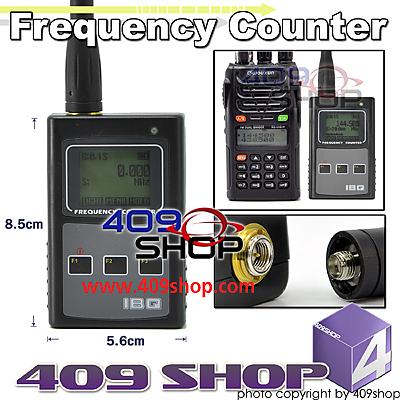

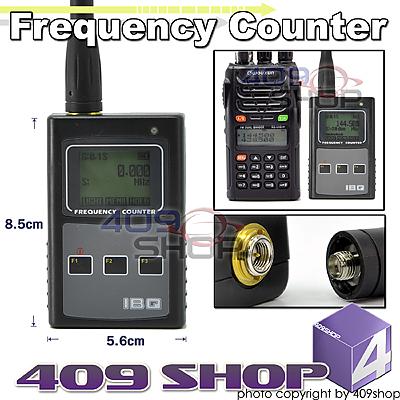

Size: 85mm(H)56mm(D)24mm(W)
ANT: (UHF)

Package Including:

1* IBQ101 Frequency Counter
1* SMA-Female antenna
1* AC Adapter
