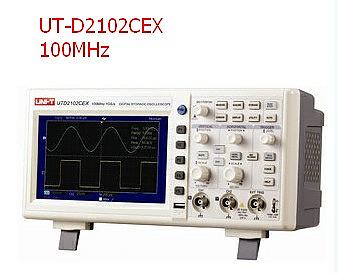

UTD2102CEX

Digital Storage Oscilloscope

SPECIFICATIONS Feature UTD2102CEX Bandwidth 100 MHz Rise Time ≤3.5 ns Sample Range 500MS/s Vertical Sensitivity 2mV ~ 5V/div Record Length (Max) 1024k Sample Rate Real time 500MS/s, Equivalent: 25GS/s Scan Time Base 5ns ~ 50s/div  Trigger Type Edge, Pulse, Video and Alternate Automatic Waveform Measurements 28 Ports Standard: USB Device, USB Host RS-232C, Optional: LAN Mathematics Add, Subtract, Multiply, Divide, Reverse and FFT Applications College Education, R&D, Electronic product assemble line, Industrial Control etc. Display 64k, Full colour LCD 320 x 240 GENERAL CHARACTERISTICS Power 100 - 240VACRMS, 45Hz - 440Hz, CAT II LCD Size Diagonal 145mm (5.7 inches) Product Color Red and Grey, White and Grey Product Net Weight 4kg (Excluding packaging) Product Size 320mm (wide) x 150mm (high) x 130mm (deep) Standard Accessories Probe x 2 (1x, 10x switchable; Optional Purchase: 100x probe), Power Cord and English Manual Standard Individual Packing Gift Box             *Available at Extra Cost Specifications and other information are subject to change without further notice
