TG6A VHF+41-12K

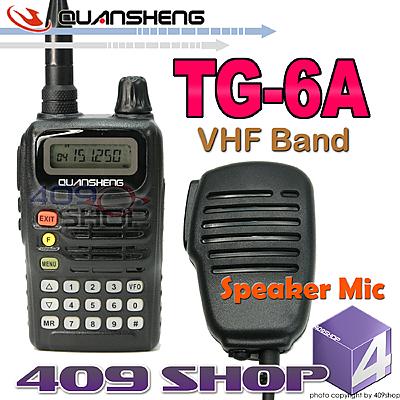

QUANSHENG FM Transceiver Radio VHF 136-174Mhz TG-6A+earpiece+Speaker Mic
INFO :
- Dual watch function
- FM radio
- 100 channels
- 50 CTCSS and 208 DCS
- Switch power between high, medium, and low
- Monitor and scan function
- Display channel and frequency mode
- Low power alarm
- Keypad and LCD backlight function
- Earphone, microphone, and automatic charger jack
- Battery: 1,100mAh lithium ion battery pack (rechargeable)
- Frequency range: VHF: 136 to 174MHz
Transmitter:
-
- Power output: ≥4/2/1W
- Emission current: 1.5A (4W)
- Modulation mode: 16KΦF3E and 11KΦF3E
- Maximum frequency deviation: <5K/<2.5kHz
- Radiation response: <7μW
- Modulation sensitivity: 12mV
- Modulation distortion:<5%
- Receiver:
- Sensitivity: -122dBm (12dB SINAD)
- Audio output power: 500mW
- Audio distortion: <10%
- Blocking: ≥85dB
- Inter-modulation: ≥60dB, ≥55dB
- Adjacent channel selectivity: ≥65dB, ≥60dB
- Spurious response rejection: ≥65dB
- Dimensions: 11 x 5.6 x 3.7cm
- Weight: 0.85kg

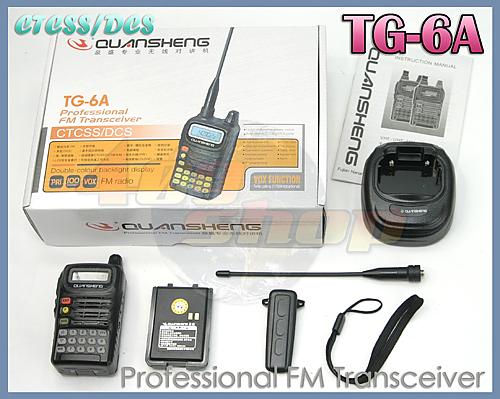

Free for
-
1x TG-6A (VHF 136-174Mhz)
-
1x 7.2 v 1500mah Li-ion Battery
-
1x VHF Antenna.
-
1x Belt Clip.
-
1x English Manual
-
1x Earpiece
-
1x Wrist Strap
-
1x Desktop Charger *
*100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)

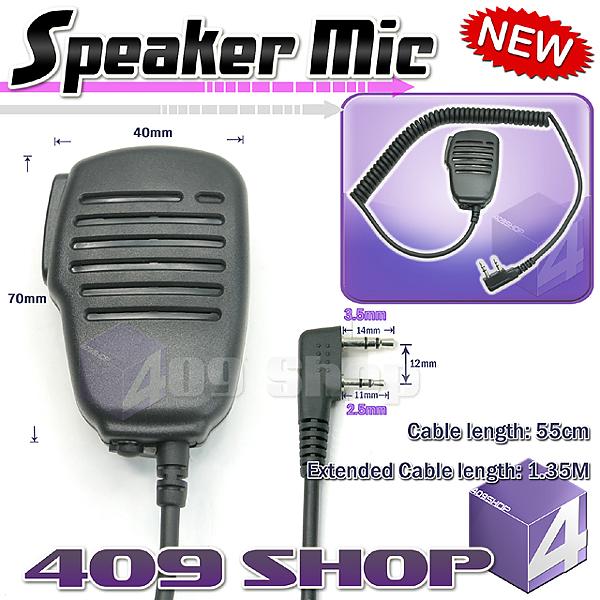

- 1 x Speaker Microphone
|
|
|
|
