Frequency range:

FM:   88-108MHz (RX)

VHF:  136-174MHz (RX/TX)

UHF:  400-470MHz (RX/TX)

Double frequency display of the LCD

• U-U, V-V, U-V work mode
• CTCSS/DCS auto search
• Built-in Vox function
• Scrambler
• FM radio
• Jacklight function
• Alpha-numeric display
• Talk in multi-bands
• PC programmable
• 1750Hz call tone
• Frequency/channel scanning
• Channel scanning list edition(by which you may choose a channel to scan)
• Battery : Li-ion battery
• Dual-watch operation
• Power switch:5w/2.5w/1w
• Priority scan
• Wide/narrow bandwidth
• Transmitter:
  • Power output: High≥5w  Medium ≥2.5w  Low ≥1w
  • Emission Current: ≤1.5A
  • Modulation sensitivity: 12mV
  • Modulation  Distortion:  <5%
  • Modulation Limiting : Wide <5KHz    Narrow  <2.5KHz
  • Modulation Mode: 16ΦF3E 11KΦF3E
  • Remanent Radiation ≤7μw
  • Preemphasis character : 6dB
  • CTCSS/DCS Frequency Deviation :0.75KHz±50Hz  0.37KHz±30Hz
• Receiver:
  • RF Sensitivity: -122dBm(12dB SINAD)
  • Modulation Receiver  Bandwith: 5KHz
  • Audio Distortion: ≤10%
  • Audio  power: <0.5w
  • Audio Response:6dB
  • Blocking: ≥85dB
  • Spurious response rejection: ≥65db
• Dimensions:   110mmx 56mmx  37mm

Free for

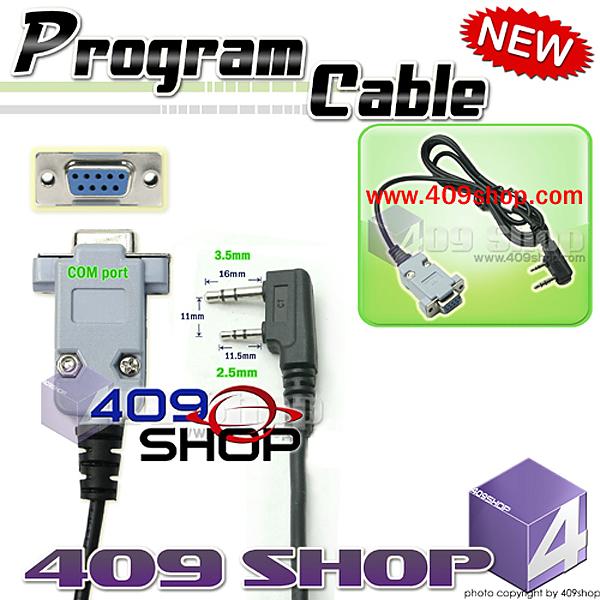

Com Port Prog cable



Free for

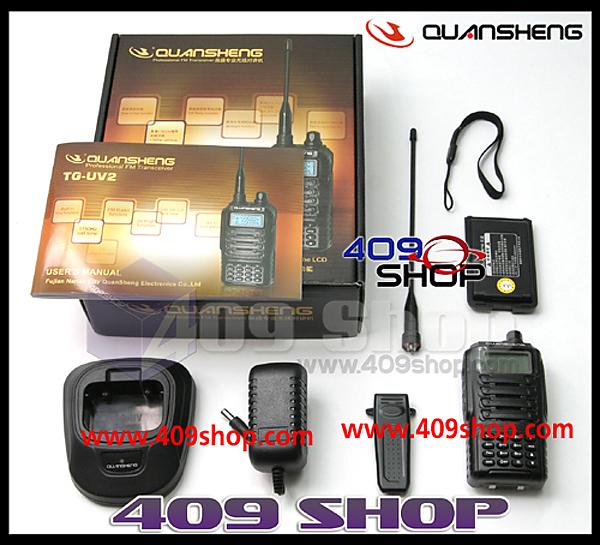

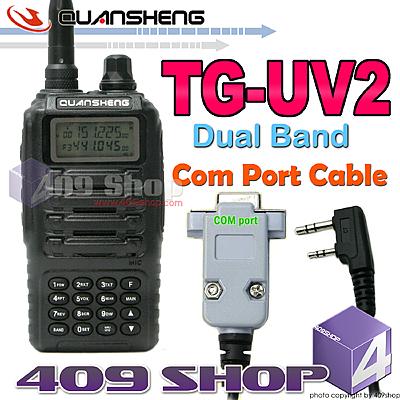

Each Set PACKAGE CONTAIN 1 x Quansheng Dual Band radio TG-UV2  (VHF 136-174Mhz and UHF 400-470MHZ) 1 x 7.4V 2000mah Li-ion Battery Pack 1 x Dual band Antenna. 1 x Belt Clip. 1 x ENG Manual 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia) 1 x Earpiece with PTT 1 x Com Port Program cable
