編號: 1 x FD-289 UHF

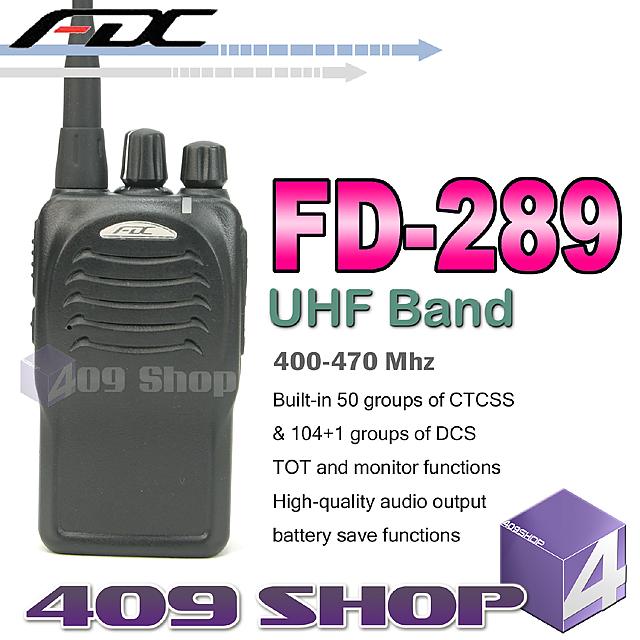

名稱: 1 x FeiDaxin FD-289 UHF 400-470mhz ham radio

優惠價: HKD 465.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


FD289 UHF

FeiDaxin

FD289 UHF 400-470mhz ham radio



Special features

Built-in 50 groups of CTCSS and 104+1 groups of DCS Standby time: 120 hours Super-mini size
Rapid charger and high capacity Li-ion battery Low battery alert High-quality audio output
High power output (5/4W) TOT and monitor functions Scan function
Programming method:computer Battery save function Rain-resistant

Technical specifications

Model NO. FD-289
General
Frequency Band UHF
Frequency Range 400-470MHz
Channel Capacity 16
Operating Voltage 7.2V DC ±15%
Antenna Impedance 50Ω
Channel Spacing 12.5kHz/25kHz
Working Temperature -30 ℃ - +60 ℃
Frequency Stability ±2.5 ppm
Size (Without Antenna) 50mm(W)x98mm(L)x30mm(D)
Weight(With Battery) 198g
Battery 1200 mAh(Li-ion)
Compatible With American Military Standard(MIL-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output 4W/5W
Modulation Type F3E
Modulation Distortion < 5%(300-3000Hz)
Max Freq Deviation < 5kHz(1000kHz When 100%)
FM Noise <=-45dB
Receiver
Sensitivity(12Db SINAD) 0.16μV
Selectivity 55dB
Adjacent Channel Selecivity >=70dB
Noise Respond >=60dB
FM Noise 45dB/40dB
Modulation Type 8K/16KOF3E
Audio Power Output 500mW When Distortion Less Than 10%
Audio Distortion < 5%
Operating Bandwidth ±7.5kHz/3.75kHz
Standby current <15mA




Each Set PACKAGE CONTAIN
  • 1 x FD-289 Ham radio (UHF 400-470Mhz)
  • 1 x Li-ion Battery Pack.
  • 1 x Antenna UHF 400-470mhz
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x Belt Cilp
  • 1 x user///////////////'//i//i//i//i//i//i//i/s manual
