編號: 1 x KG-689-VHF+4-001K
名稱: 1 x WOUXUN KG-689 VHF136-174Mhz + earpiece

優惠價: HKD 634.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


 KG689 VHF + Free earpiece

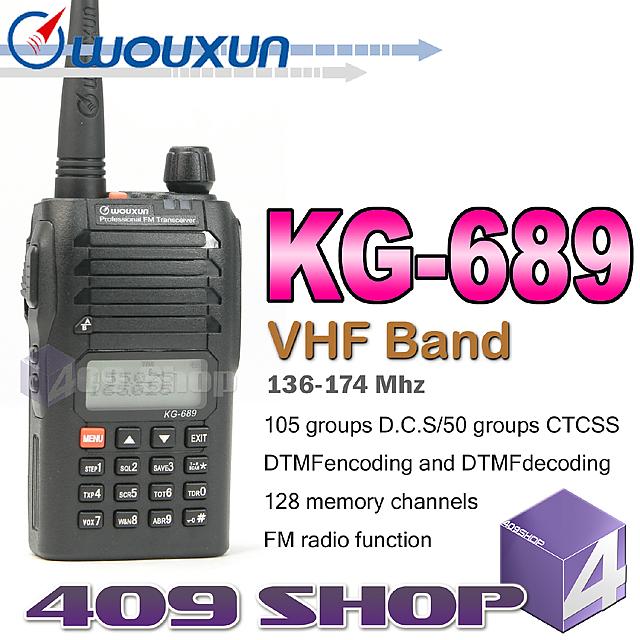

WOUXUN KG-689 VHF136-174Mhz + earpiece

Amateur Handheld Transceivers

Transceivers with FM RADIO

With Free Earpiece

  • Dualfrequency (VHF Dualfrequency )
  • Dualdisplay and standby state
  • DTMFencoding and DTMFdecoding
  • Output power VHF 5W
  • VOX (Level adjustable)
  • 105 groups D.C.S/50 groups CTCSS
  • All call, group call and select call.
  • ANI ID (Caller ID)
  • 128 memory channels
  • Voice guide (Chinese /English)
  • Channel steps(5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow brandwidth selection (12.5KHz/25KHz)
  • Three color back light can be selectable .
  • 1200mAh Li-ion batterypack and intelligentcharge
  • Frequency/Channel/Frequency+Channel display mode
  • Multi scan mode(TO/CO/SE)
  • Calling ring and ring overtime auto answer
  • Multi silent mode(QT/QTADT/QTXDT)
  • Keyboard lock(Auto/Manual)
  • Talk around function
  • Busy channel lockout
  • Programmable by computer
  • Menu/Channel reset
  • FM radio function



General
Frequency Range

136-174MHZ

Channels
128
Channel Steps
5k,10k,6.25k,12.5k,25k
Power Supply
7.2V1200MAh Li-ion
Operating Temperature
-20°C ~ +60°C
Antenna impedance
50Ω
Dimension (H x W x D)
108 x 55 x 38mm

Channels

Co-channel or Simplex or Duplex
RX
Receiver
Sensitivity
<0.20µV
Selectivity
65dB
Intermodulation Rejection
60dB
AF Output
500mW
Standby Current
35mA
TX
Transmitter
Power Output
5W
Modulation Type
F3E
Spurious Emission
< -65dB
Transmit Current
700mA/350mA
Max. Deviation
±5kHz
Modulation Distortion
< 5%
Frequency Stability
±2.5ppm

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.


Specifications from WOUXUN company

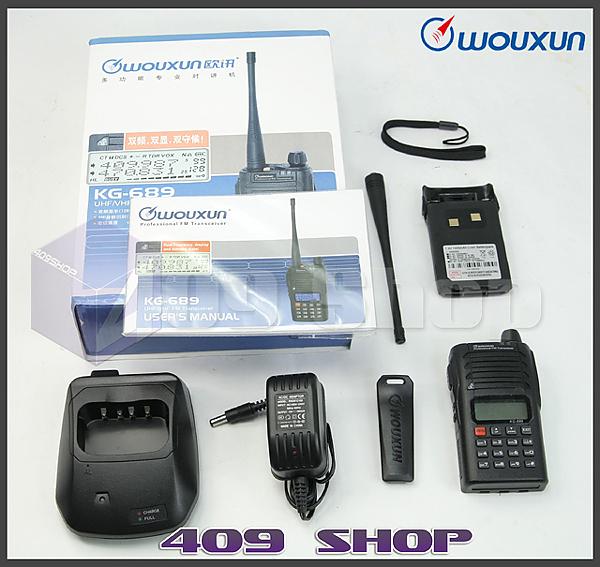

Each Set PACKAGE CONTAIN
  • 1x KG-689 (VHF 136-174MHZ)
  • 1x 7.4 1400mah Battery Pack.
  • 1x Antenna.
  • 1x Wrist Strap
  • 1x Belt Clip
  • 1x English Manual
  • 1x Earpiece
  • 1x Desktop Charger *
    *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)






Accessories



Spare Part

KG-669 Series

KG-679 Series

KG-699E Series ( Dual Display)

KG-689 Series  ( Dual Display)

KG-659 Series (128 CH) Programming by PC
