| 編號: FD-288V+S002B |
| 名稱: Feidaxin FD-288 VHF 136-174mhz radio + Adaptor |
優惠價: HKD 525.00 |
| 貨幣單位:: HKD |
| 可以寄往: 香港 |
|
|
| |
詳情 |
| |
| |

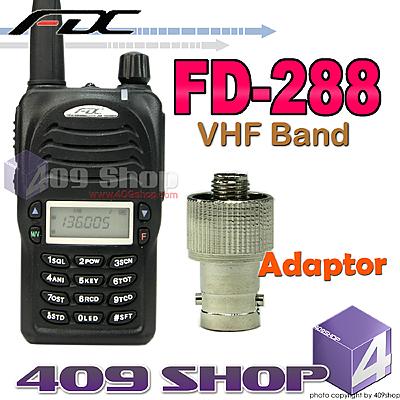

FD-288V+S002B
FDC FD288 VHF 136-174Mhz
+ Adaptor
Built-in groups of CTCSS and 104+1 groups of DCS
- LCD&keypad backlit display
- Standby time:120hours
- Scan function
- Hi/Lo power select
- Programming method:computer/manual
- High capacity Li-ion battery and rapid charger
- Signal strength indicator
- 12.5KHz/25KHz compatibility
- Super-mini size measuring 52x98x30mm
- Keypad lock
- Battery indicator
- Adjustable squelch level
Technical specifications
| Model NO. |
FD-288 |
| General |
| Frequency Band |
VHF |
|
| Frequency Range |
136-174MHz |
|
| Channel Capacity |
99 |
| Operating Voltage |
7.2V DC ±15% |
| Antenna Impedance |
50Ω |
| Channel Spacing |
12.5kHz/25kHz |
| Working Temperature |
-30 ℃ - +60 ℃ |
| Frequency Stability |
±2.5 ppm |
| Size (Without Antenna) |
50mm(W)x98mm(L)x30mm(D) |
| Weight(With Battery) |
198g |
| Battery |
1200 mAh(Li-ion) |
| Compatible With American Military Standard(MIL-STD-810C/D/E) |
| Transmitter（EIA-RS 316B STANDARD） |
| RF Power Output |
5W/4W |
| Modulation Type |
F3E |
| Modulation Distortion |
< 5%(300-3000Hz) |
| Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
| FM Noise |
<=-45dB |
| Receiver |
| Sensitivity(12Db SINAD) |
0.16μV |
| Selectivity |
55dB |
| Adjacent Channel Selecivity |
>=70dB |
| Noise Respond |
>=60dB |
| FM Noise |
45dB/40dB |
| Modulation Type |
8K/16KOF3E |
| Audio Power Output |
500mW When Distortion Less Than 10% |
| Audio Distortion |
< 5% |
| Operating Bandwidth |
±7.5kHz/3.75kHz |
| Standby Current |
< 12mA |
FREE FOR
Adaptor
FREE FOR
|
|

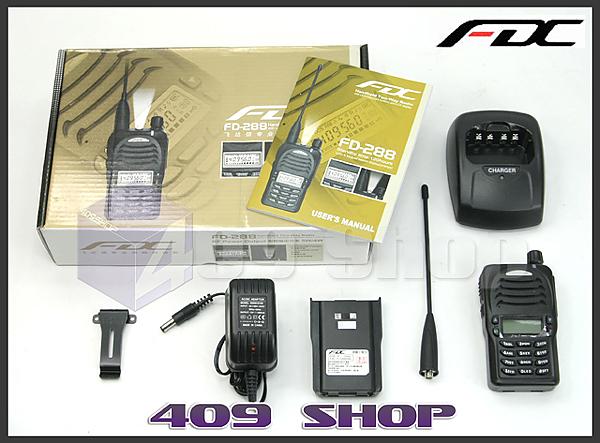

- 1 x FDC FD-288V (VHF 136-174Mhz)
- 1 x 7.2v 1200mah Li-ion Battery Pack
- 1 x VHF Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger + PSU(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x Earpiece
- 1 x Adaptor S002B
|
|
|
|
|
|
|
|
| |
|
